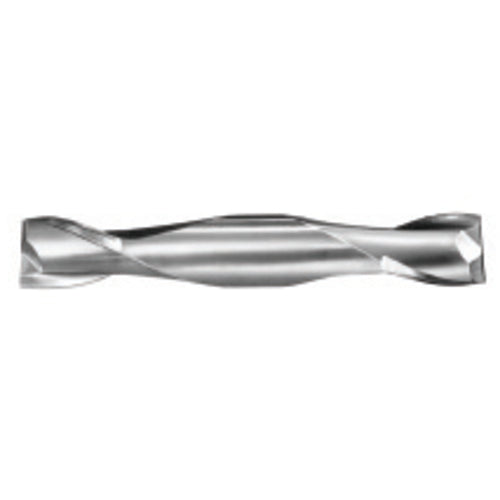

1.5 End Mill 2FL SQ TA - SER 15S 1.5x3x3x38
Item #: DD9049053
Brand: KYOCERA SGS Precision Tools
Model #: 49053
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1-1/2 mm |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| End Shape | Square |
| Depth of Cut Maximum (APMX) | 3 mm |
| Usable Length (LU) | 35 mm |
| Overall Length (OAL) | 38 mm |
| Corner Radius (RE) | None |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | TA |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | 15S |
