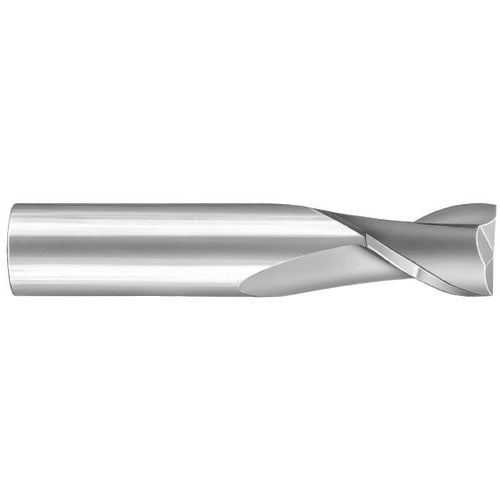

10.0 End Mill 2FL SQ TC - SER 17S 10x10x16x50
Item #: DD9049296
Brand: KYOCERA SGS Precision Tools
Model #: 49296
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 10 mm |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Usable Length (LU) | 34 mm |
| Depth of Cut Maximum (APMX) | 16 mm |
| Corner Radius (RE) | None |
| Overall Length (OAL) | 50 mm |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | TC |
| Decimal Equivalent | 0.3937″ |
| Flute Count (NOF) | 2 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 32 Degrees |
| Series/List # | 17S |
| Shank Type | Round |
