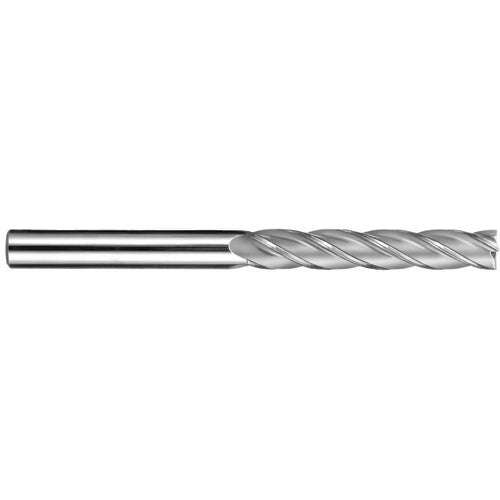

10.0 End Mill 4FL SQ TA - SER X1S 10x10x38x100
Item #: DD9049419
Brand: KYOCERA SGS Precision Tools
Model #: 49419
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 10 mm |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Usable Length (LU) | 62 mm |
| Depth of Cut Maximum (APMX) | 38 mm |
| Corner Radius (RE) | None |
| Overall Length (OAL) | 100 mm |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | TA |
| Decimal Equivalent | 0.3937″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | X1S |
| Shank Type | Round |
