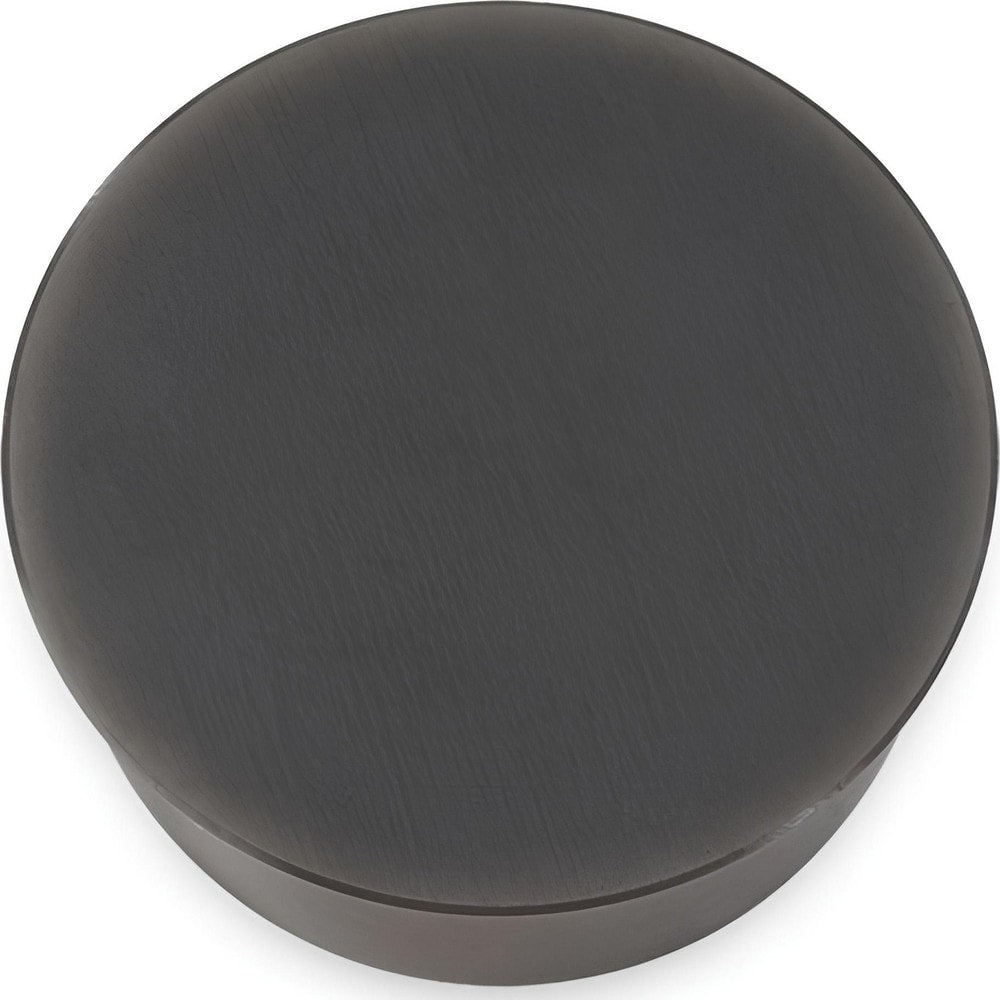

Brand: Ingersoll Cutting Tools / Part #: 6301183
Item #: 67309476
Brand: Ingersoll Cutting Tools
Model #: 6301183
Product Specifications
| Insert Style | RPGN |
| Insert Size Code | 1204 |
| Insert Material | Silicon Nitride |
| Manufacturer Grade | IN76N |
| Length (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Inch) | 1/4 |
| Insert Hand | Neutral |
| Series | RPGN |
| Coating Process | Uncoated |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Round |
| Rake | Positive |
| Primary Workpiece Material | Super-alloys & Titanium |
| Primary Workpiece Material Code | S |
| Ansi Code | RPGN1204FL-T6 |
| Rake Angle | 11.000 |
| Manufacturers Catalog Number | RPGN1204FL-T6 IN76N |
| Cutter Series Compatibility | 1DB1H |
| Chip Breaker | T6 |
| Cutting Direction | Neutral |
| Shape | Round |
| Length of Cut (mm) | 6.3500 |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Coating/Finish | Uncoated |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
