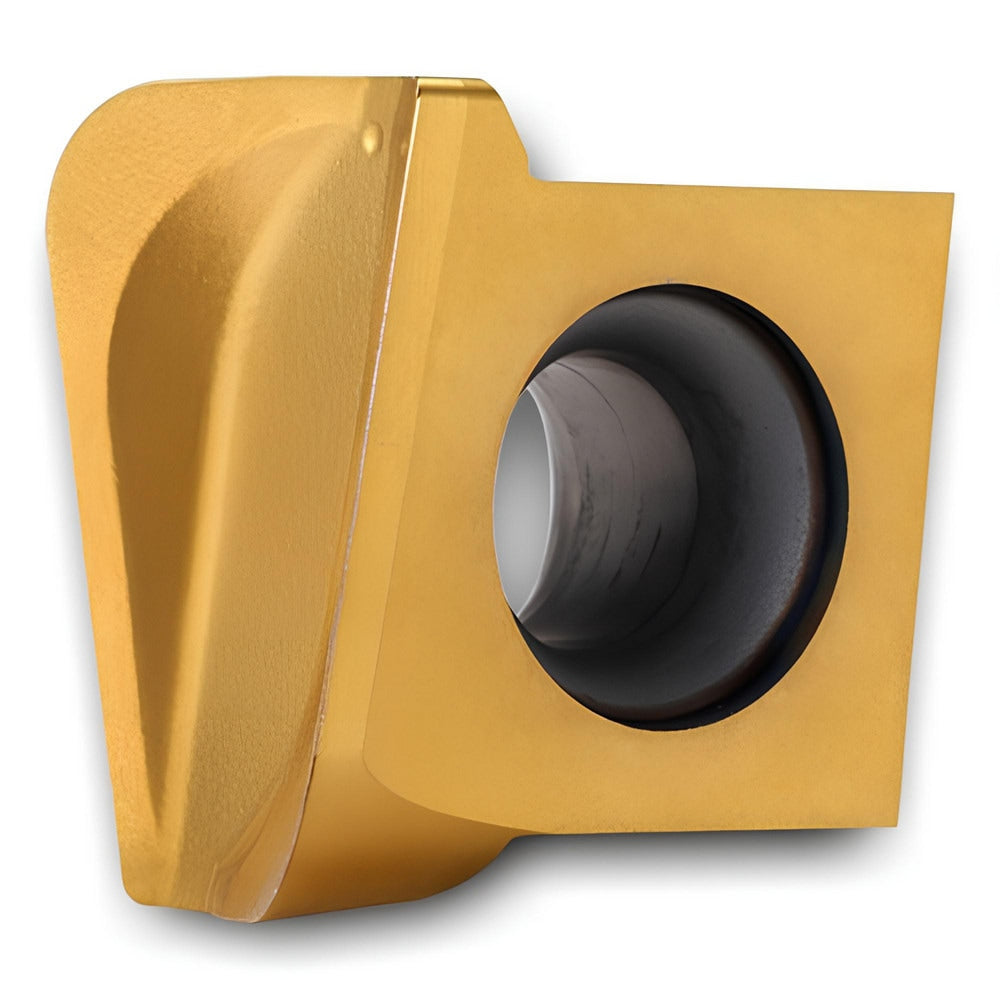

Brand: Ingersoll Cutting Tools / Part #: 2922945
Item #: 67322438
Brand: Ingersoll Cutting Tools
Model #: 2922945
Product Specifications
| Insert Style | IPM |
| Insert Size Code | 426 |
| Insert Material | Carbide |
| Manufacturer Grade | IN4035 |
| Thickness (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.5670 |
| Corner Radius (Inch) | 1/4 |
| Insert Hand | Right Hand |
| Series | IPM |
| Coating Process | PVD |
| Maximum Depth of Cut (mm) | 16.00 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Rectangle |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Ansi Code | IPM426R009-ML K |
| Rake Angle | 11.000 |
| Manufacturers Catalog Number | IPM426R009-ML K IN4035 |
| Cutter Series Compatibility | 2XJ3J |
| Chip Breaker | ML |
| Cutting Direction | Right Hand |
| Shape | Rectangle |
| Length of Cut (mm) | 16.0000 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | AlCrO; TiAlN |
| Included Angle Degree | 90 |
| Length | 16.00 |
| Width (Decimal Inch - 4 Decimals) | 0.5670 |
| Multi-Use Tool | Yes |
