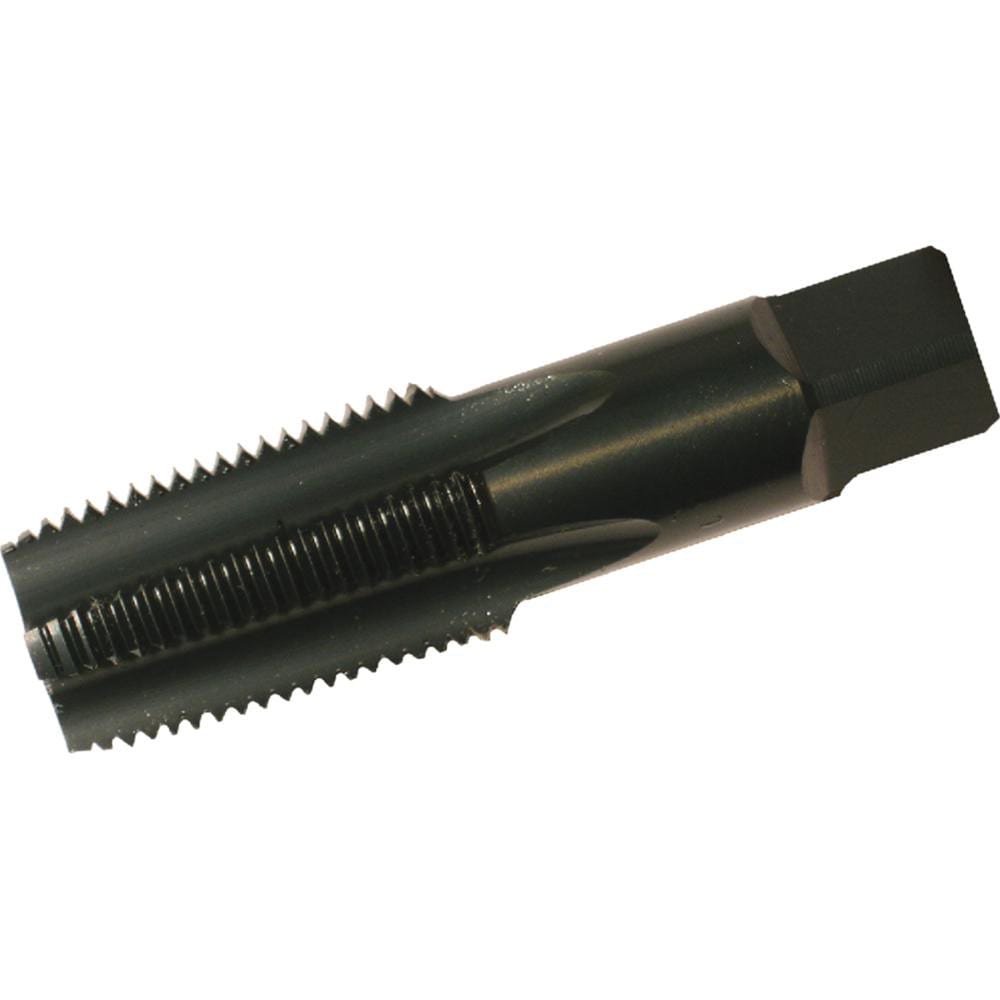

Brand: Widia / Part #: 2603958
Item #: 90234329
Brand: Widia
Model #: 2603958
Product Specifications
| Thread Standard | NPT |
| Material | High Speed Steel |
| Overall Length (Inch) | 2-1/8 |
| Threads per Inch | 27 |
| Thread Size (Inch) | 1/8-27 |
| Application | Metal |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Square Size (Decimal Inch) | 0.2340 |
| Chamfer | Plug |
| Series | 5320 |
| Thread Length (Decimal Inch) | 0.7500 |
| Coating/Finish | TiN |
| Thread Pitch (Decimal Inch) | 0.0370 |
| Square Length (Decimal Inch) | 0.3750 |
| Thread Depth (Decimal Inch) | 0.7500 |
| Number Of Flutes | 4 |
