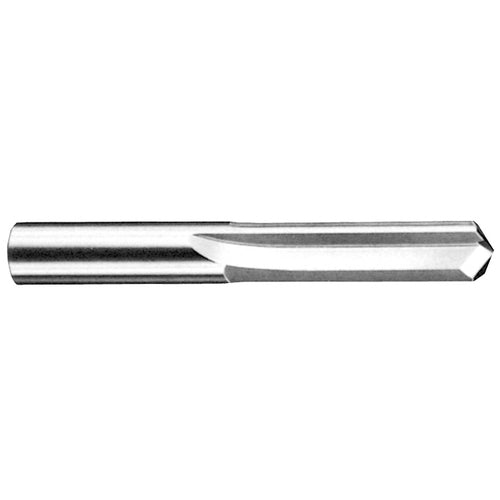

#53 Dia. × 0.0595″ Shank × 1/2″ Flute Length × 1-1/2″ OAL, 3xD, 140°, TA, 2 Flute, External, Round Solid Carbide Drill
Item #: DD9156262
Brand: KYOCERA SGS Precision Tools
Model #: 56262
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | #53 |
| Tool Type | Drill |
| Decimal Equivalent | 0.0595″ |
| Length Below Shank | 1.04″ |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #53 |
| Flute Type | Straight |
| Length Group | 3xD |
| Measurement Type | Wire Gauge |
| Coating | TA |
| Series/List # | 106 |
| Connection Diameter Machine Side (DCONMS) | 0.0595″ |
| Usable Length (LU) | 13/32″ |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 1/2″ |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 1-1/2″ |
| Flute Helix Angle (FHA) | 0 Degrees |
| Flute Count (NOF) | 2 |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
