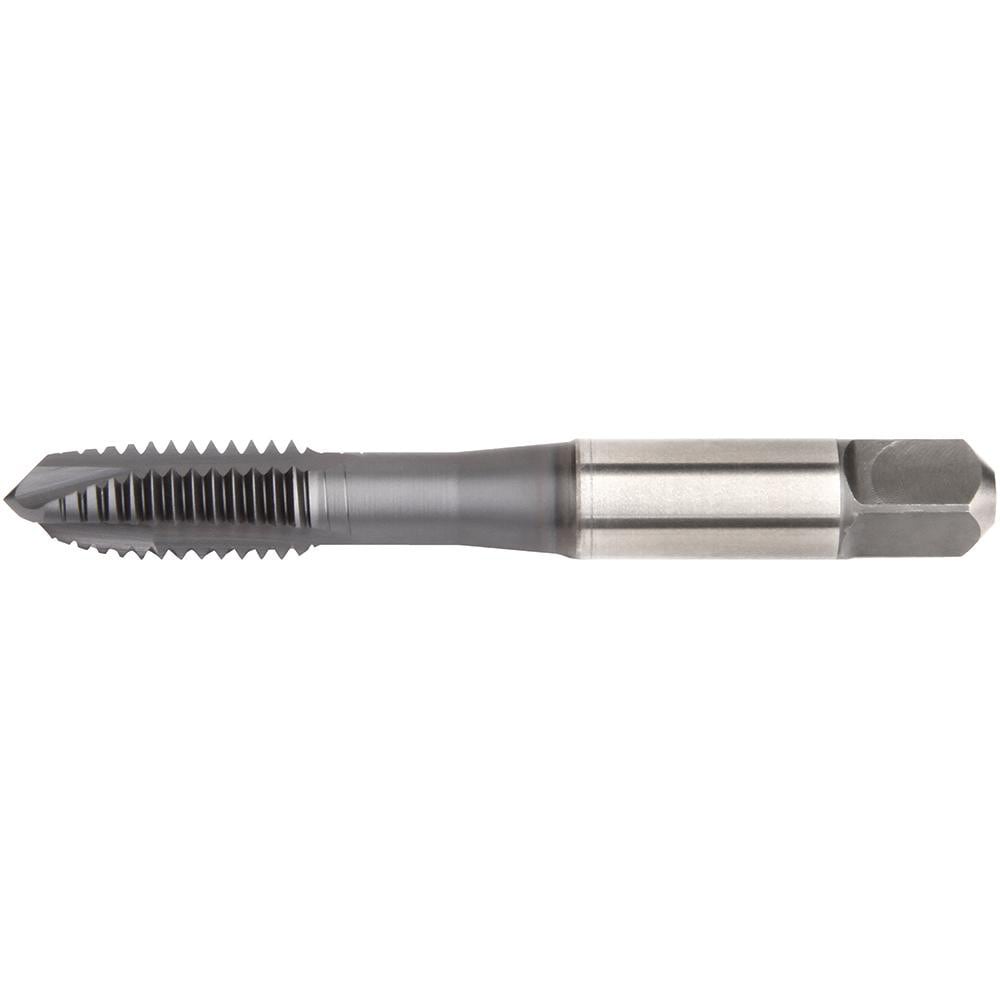

Brand: Widia / Part #: 5362732
Item #: 93316511
Brand: Widia
Model #: 5362732
Product Specifications
| Thread Size (mm) | M10x1 |
| Number Of Flutes | 3 |
| Chamfer | Plug |
| Thread Limit | D11 |
| Class Of Fit | D11 |
| Coating/Finish | Black Oxide |
| Threads per Inch | 25 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (mm) | 31.60 |
| Thread Pitch (mm) | 1.00 |
| Thread Standard | UNC |
| Material Grade | WP49EG |
| Thread Length (mm) | 19.10 |
| Overall Length (mm) | 74.0000 |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Square Length (mm) | 11.10 |
| Square Size (mm) | 7.21 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VT-SPO |
