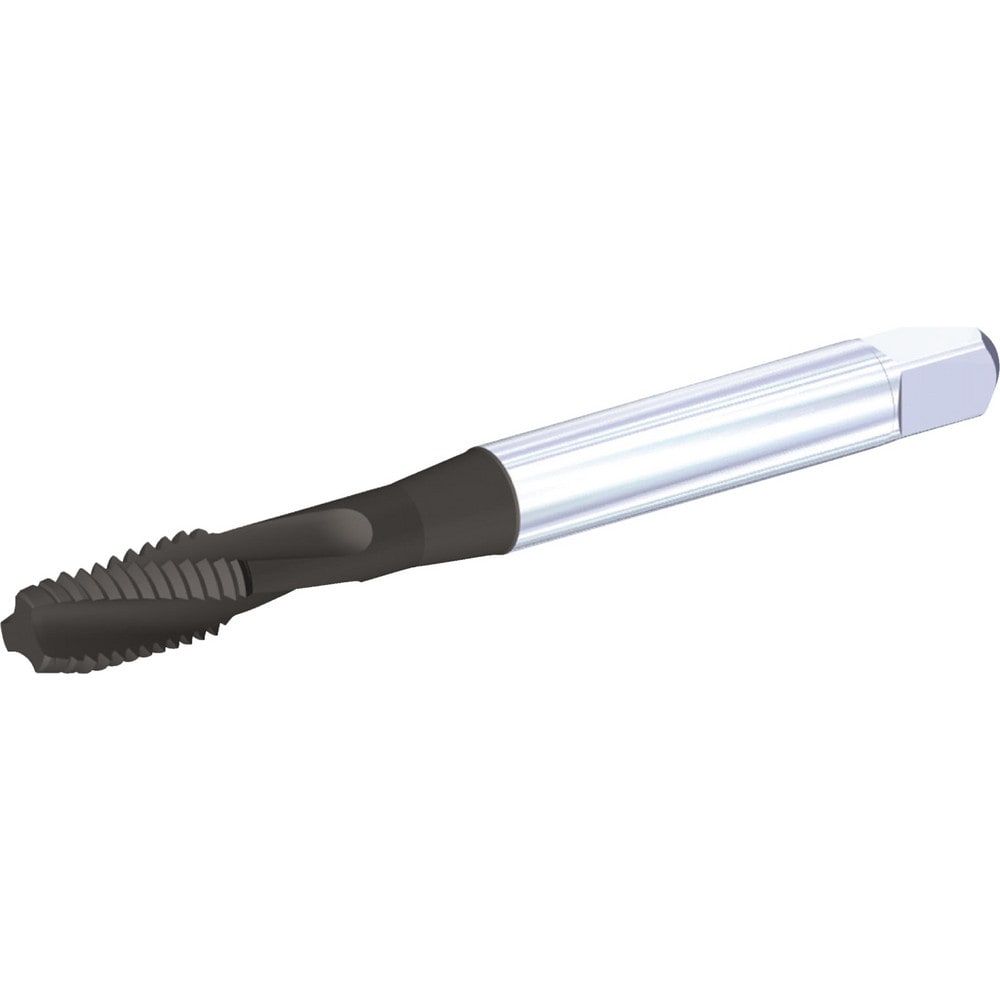

Brand: Widia / Part #: 5690869
Item #: 97345201
Brand: Widia
Model #: 5690869
Product Specifications
| Thread Size (mm) | M6x1 |
| Chamfer | Modified Bottoming |
| Thread Limit | D5 |
| Class Of Fit | 6H |
| Number Of Flutes | 3 |
| Material | High Speed Steel |
| Threads per Inch | 25 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | C; CrC; TiN |
| Thread Depth (mm) | 30.00 |
| Coolant Through | No |
| Thread Length (mm) | 12.00 |
| Overall Length (mm) | 80.0000 |
| Thread Pitch (mm) | 1.00 |
| Thread Standard | Metric |
| Material Grade | WN44EG |
| Shank Diameter (mm) | 6.4800 |
| Square Length (mm) | 7.90 |
| Square Size (mm) | 4.80 |
| Material Application | Non-Ferrous Metal |
| Series | GT86 |
