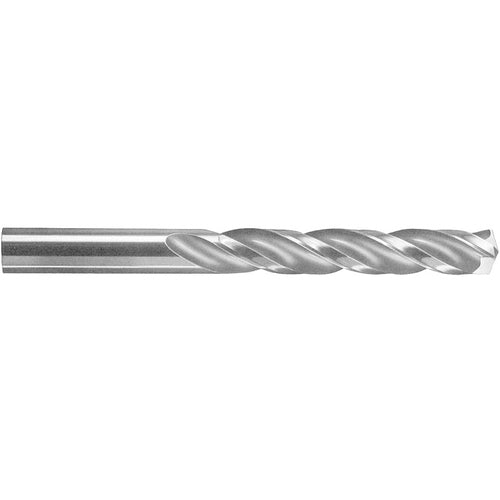

29/64″ Dia. × 29/64″ Shank × 3″ Flute Length × 4-3/4″ OAL, 5xD, 150°, TA, 3 Flute, External, Round Solid Carbide Drill
Item #: DD9158095
Brand: KYOCERA SGS Precision Tools
Model #: 58095
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 29/64″ |
| Tool Type | Drill |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 29/64″ |
| Length Below Shank | 1.925″ |
| Decimal Equivalent | 0.4531″ |
| Flute Type | Spiral |
| Length Group | 5xD |
| Measurement Type | Inch |
| Coating | TA |
| Series/List # | 103 |
| Connection Diameter Machine Side (DCONMS) | 29/64″ |
| Usable Length (LU) | 2.4062″ |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 3″ |
| Point Angle (SIG) | 150 Degrees |
| Overall Length (OAL) | 4-3/4″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Flute Count (NOF) | 3 |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
