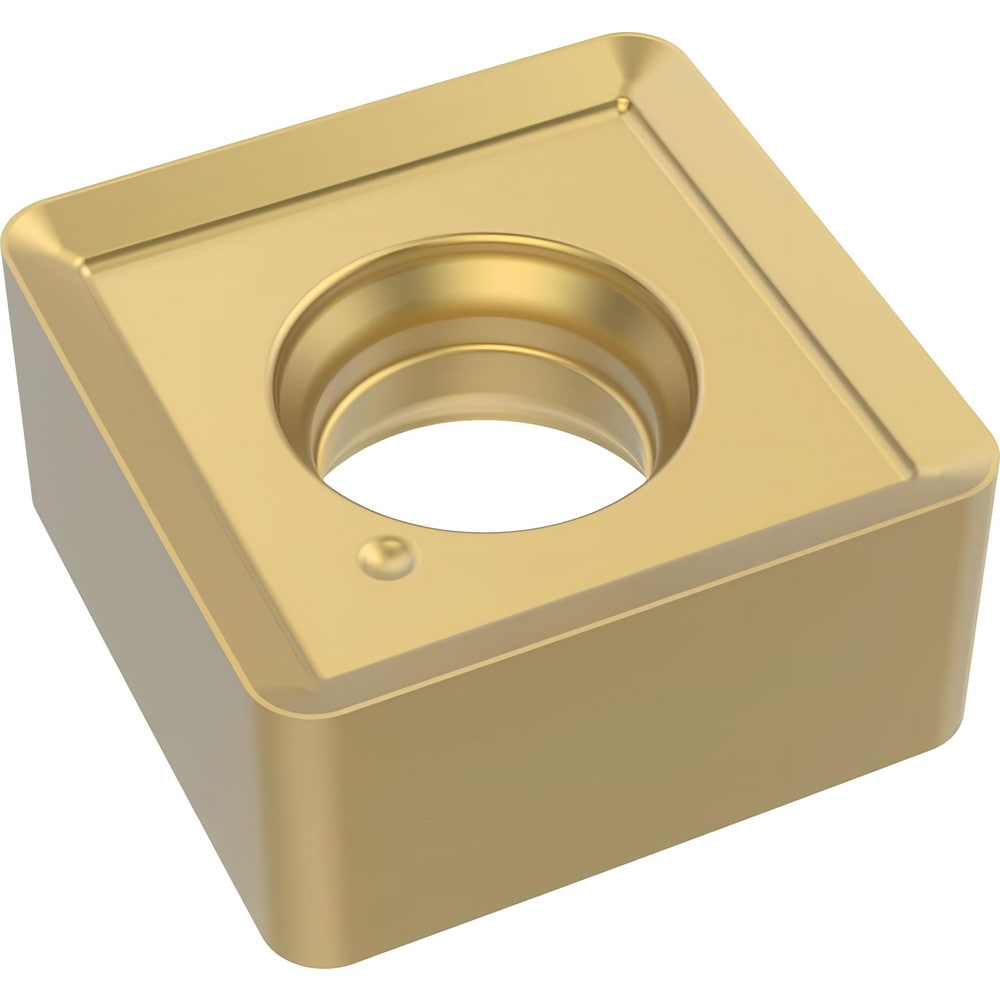

Brand: Seco / Part #: 10148419
Item #: 94202504
Brand: Seco
Model #: 10148419
Product Specifications
| Insert Style | SNGU |
| Insert Size Code | 13 |
| Insert Size | 130612 |
| Insert Material | Carbide |
| Manufacturer Grade | F40M |
| Inscribed Circle (Decimal Inch) | 0.5350 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Insert Hand | Neutral |
| Relief Angle | 0.000 |
| Series | SNGU |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.2264 |
| Maximum Depth of Cut (Decimal Inch) | 0.4880 |
| Number Of Cutting Edges | 8 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4880 |
| Insert Shape | Square |
| Rake | Negative |
| Primary Workpiece Material | Non-Ferrous Metal; Super-Alloys & Titanium; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M; N |
| Ansi Code | SNGU130612EN-ME10 |
| Iso Code | SNGU130612EN-ME10 |
| Rake Angle | 26.000 |
| Cutting Edge Style | Honed |
| Cutter Series Compatibility | R220.82; R217.82 |
| Chip Breaker | ME10 |
| Cutting Direction | Right Hand |
| Material Application | Non-Ferrous Metal; Stainless Steel; Superalloys & Titanium; Steel |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5350 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2190 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5350 |
