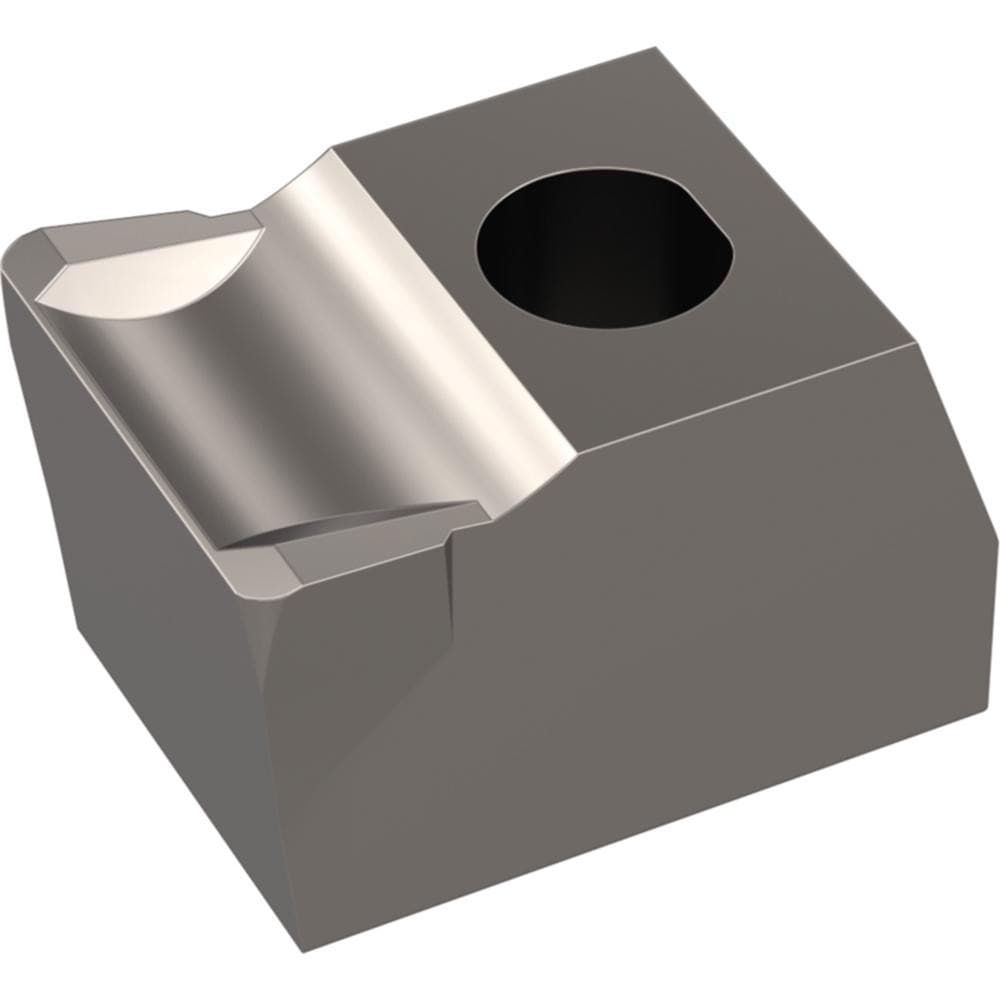

Brand: Widia / Part #: 2017976
Item #: 94418852
Brand: Widia
Model #: 2017976
Product Specifications
| Insert Style | LGN0 |
| Insert Size Code | 10 |
| Insert Size | 10 |
| Insert Material | Carbide |
| Manufacturer Grade | THM |
| Cutting Width (Decimal Inch) | 0.3996 |
| Maximum Depth of Cut (Decimal Inch) | 0.4000 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (Inch) | 1/32 |
| Lead Angle | 7.000 |
| Rake | Positive |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning |
| Series | LGN0 |
| Coating Process | Uncoated |
| Overall Length (Decimal Inch) | 0.5576 |
| Primary Workpiece Material | Non-Ferrous Metal; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; N |
| Secondary Workpiece Material | Stainless Steel; Cast Iron |
| Ansi Code | 123568100 |
| Iso Code | 123568100 |
| Relief Angle | 7 |
| Maximum Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturers Catalog Number | 123568100 |
| Minimum Groove Width (mm) | 10.15 |
| Type | LG Grooving |
| Maximum Groove Width (mm) | 10.15 |
| Minimum Insert Width (mm) | 9.00 |
| Chip Breaker | LGN0 |
| Insert Seat Size | 10 |
| Style | LG Grooving |
| Full Radius | No |
| Coating Classification | Uncoated |
| Hole Diameter (Decimal Inch) | 0.1654 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.3543 |
| Coating/Finish | Uncoated |
| Number Of Cutting Edges | 1 |
| Single Or Double End | Single |
| Groove Width (mm) | 10.15 |
| For Use With | Grooving; Turning |
