Brand: Seco / Part #: 02939428
Item #: 40063075
Brand: Seco
Model #: 02939428
Product Specifications
| Insert Style | SNHQ |
| Insert Size Code | 110208 |
| Insert Size | 11 |
| Insert Material | Carbide |
| Manufacturer Grade | MS2050 |

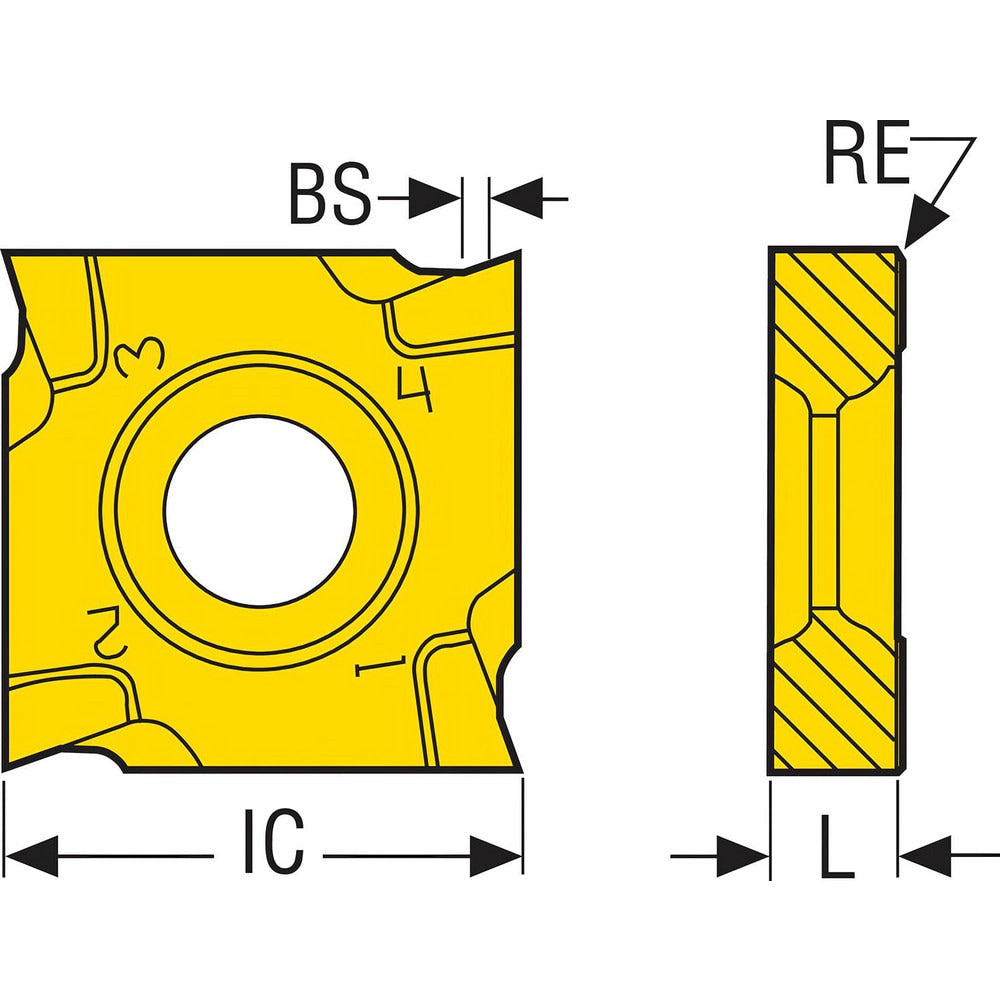

| Inscribed Circle (Decimal Inch) | 0.4331 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Right Hand |
| Relief Angle | 0.000 |
| Series | SNHQ |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.0827 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.0827 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Super-Alloys & Titanium; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | SNHQ110208TR4-M07 |
| Iso Code | SNHQ110208TR4-M07 |
| Cutting Edge Style | Chamfered & Honed |
| Manufacturers Catalog Number | SNHQ110208TR4-M07 |
| Cutter Series Compatibility | R335.19 |
| Chip Breaker | M7 |
| Cutting Direction | Right Hand |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | NbN; TiAlN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.4331 |
| Thickness (Decimal Inch - 4 Decimals) | 0.0906 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.0342 |
