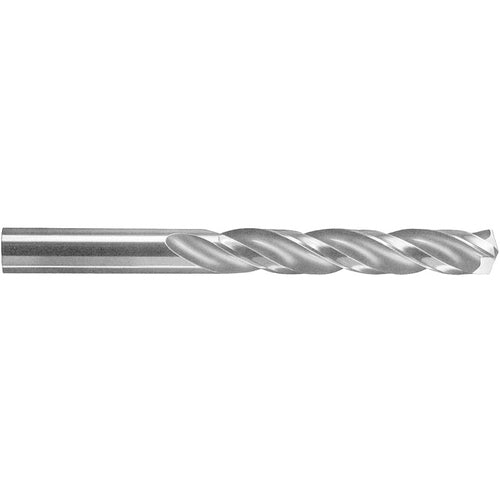

4.2 mm Dia. × 4.2 mm Shank × 22 mm Flute Length × 55 mm OAL, 5xD, 150°, Uncoated, 3 Flute, External, Round Solid Carbide Drill
Item #: DD9163005
Brand: KYOCERA SGS Precision Tools
Model #: 63005
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 4.2 mm |
| Tool Type | Drill |
| Decimal Equivalent | 0.1654″ |
| Length Below Shank | 33 mm |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.2 mm |
| Flute Type | Spiral |
| Length Group | 5xD |
| Measurement Type | Metric |
| Coating | Uncoated |
| Series/List # | 103 |
| Connection Diameter Machine Side (DCONMS) | 4.2 mm |
| Usable Length (LU) | 17 mm |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 22 mm |
| Point Angle (SIG) | 150 Degrees |
| Overall Length (OAL) | 55 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Flute Count (NOF) | 3 |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
