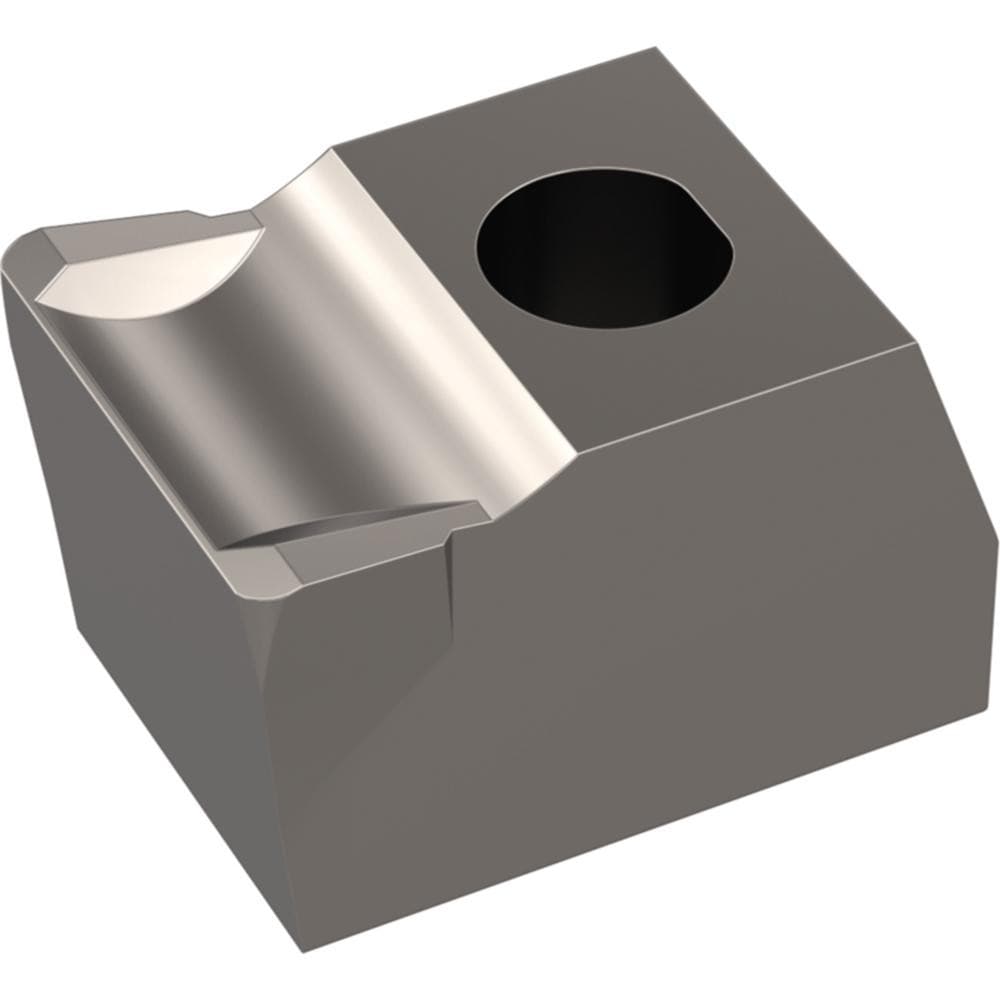

Brand: Widia / Part #: 6909026
Item #: 97263289
Brand: Widia
Model #: 6909026
Product Specifications
| Insert Style | LGN0 |
| Insert Size Code | 10 |
| Insert Material | Carbide |
| Material Grade | WU35CT |
| Manufacturer Grade | WU35CT |
| Cutting Width (Decimal Inch) | 0.4000 |
| Maximum Depth of Cut (Decimal Inch) | 0.8000 |
| Insert Holding Method | Screw |
| Corner Radius (Decimal Inch) | 0.0315 |
| Lead Angle | 90.000 |
| Rake | Positive |
| Multi-use Tool | No |
| Series | LGN0 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.5630 |
| Ansi Code | 123568100 |
| Iso Code | 123568100 |
| Maximum Corner Radius (Decimal Inch) | 0.0315 |
| Chip Breaker | LGN0 |
| Coating Classification | CVD |
| Included Angle Degree | 90 |
| Coating/Finish | TiCN |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.2000 |
