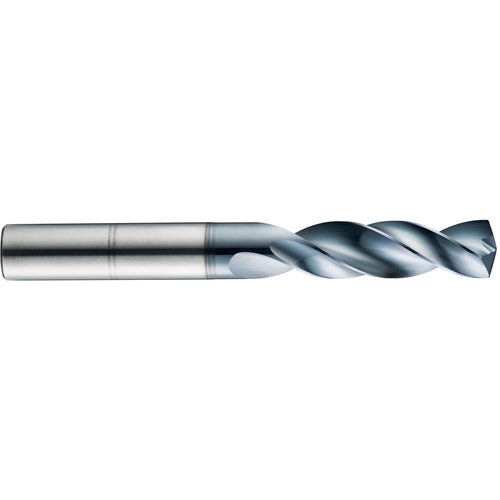

21 mm Dia. × 22 mm Shank × 93 mm Flute Length × 150 mm OAL, 3xD, 145°, TA, 2 Flute, External, Round Solid Carbide Drill
Item #: DD9164514
Brand: KYOCERA SGS Precision Tools
Model #: 64514
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 21 mm |
| Tool Type | Drill |
| Decimal Equivalent | 0.8268″ |
| Length Below Shank | 53 mm |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 21 mm |
| Flute Type | Spiral |
| Length Group | 3xD |
| Measurement Type | Metric |
| Coating | TA |
| Series/List # | 135M |
| Connection Diameter Machine Side (DCONMS) | 22 mm |
| Usable Length (LU) | 73 mm |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 93 mm |
| Point Angle (SIG) | 145 Degrees |
| Overall Length (OAL) | 150 mm |
| Flute Helix Angle (FHA) | 32 Degrees |
| Flute Count (NOF) | 2 |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
