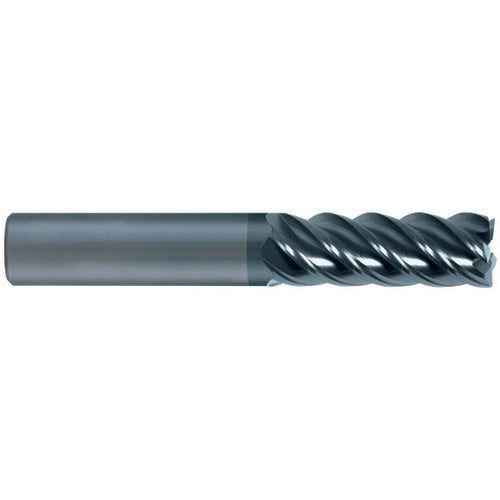

5/8 End Mill 5FL .030R TA - V-CARB 5/8x5/8x1-5/8x3-1/2
Item #: DD9232579
Brand: KYOCERA SGS Precision Tools
Model #: 32579
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1-5/8″ |
| Usable Length (LU) | 1-7/8″ |
| Overall Length (OAL) | 3-1/2″ |
| Corner Radius (RE) | 0.03″ |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | TA |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 5 |
| Decimal Equivalent | 0.625″ |
| Flute Helix Angle (FHA) | 45 Degrees |
| Series/List # | V-CARB |
