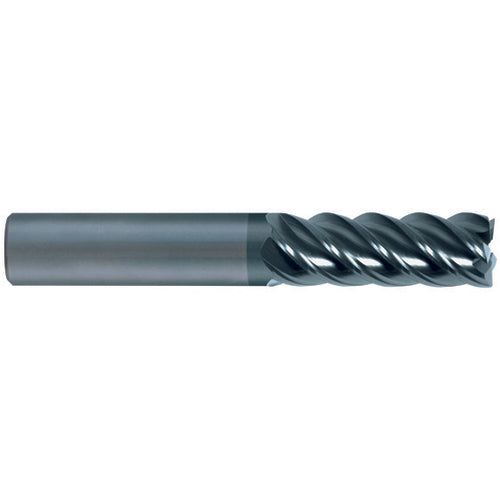

1/4 End Mill 5FL .015R TA - V-CARB 1/4x1/4x1-1/4x4
Item #: DD9232616
Brand: KYOCERA SGS Precision Tools
Model #: 32616
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/4″ |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1-1/4″ |
| Usable Length (LU) | 2-3/4″ |
| Overall Length (OAL) | 4″ |
| Corner Radius (RE) | 0.015″ |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | TA |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 5 |
| Decimal Equivalent | 0.25″ |
| Flute Helix Angle (FHA) | 45 Degrees |
| Series/List # | V-CARB |
