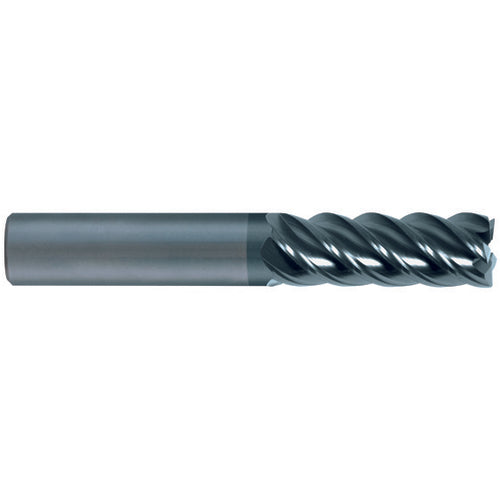

3/4 End Mill 5FL .060R TA - V-CARB 3/4x3/4x3-1/4x6
Item #: DD9232688
Brand: KYOCERA SGS Precision Tools
Model #: 32688
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 3-1/4″ |
| Usable Length (LU) | 2-3/4″ |
| Overall Length (OAL) | 6″ |
| Corner Radius (RE) | 0.06″ |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | TA |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 5 |
| Decimal Equivalent | 0.75″ |
| Flute Helix Angle (FHA) | 45 Degrees |
| Series/List # | V-CARB |
