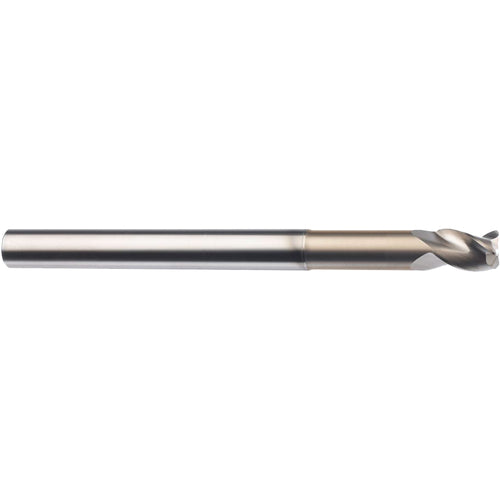

1/8 End Mill 3FL .010R TB - S-CARB 1/8x1/8x5/32x3
Item #: DD9232815
Brand: KYOCERA SGS Precision Tools
Model #: 32815
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/8″ |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 5/32″ |
| Usable Length (LU) | 2-27/32″ |
| Overall Length (OAL) | 3″ |
| Corner Radius (RE) | 0.01″ |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | TB |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Decimal Equivalent | 0.125″ |
| Flute Helix Angle (FHA) | 38 Degrees |
| Series/List # | S-CARB |
