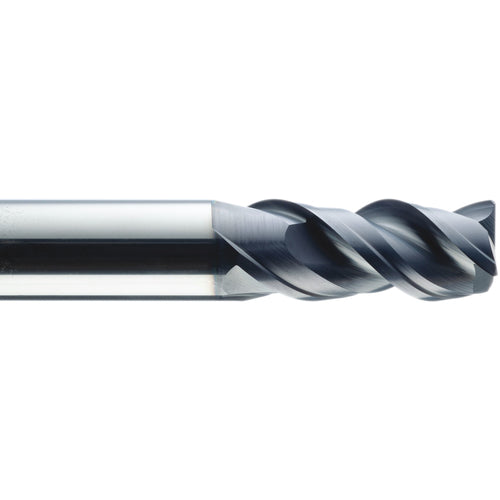

1/8 End Mill 3FL .015R TA - SER 33C 1/8x1/4x3/8x2-1/2
Item #: DD9233345
Brand: KYOCERA SGS Precision Tools
Model #: 33345
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/8″ |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 3/8″ |
| Usable Length (LU) | 2-1/8″ |
| Overall Length (OAL) | 2-1/2″ |
| Corner Radius (RE) | 0.015″ |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | TA |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Decimal Equivalent | 0.125″ |
| Flute Helix Angle (FHA) | 41 Degrees |
| Series/List # | 33C |
