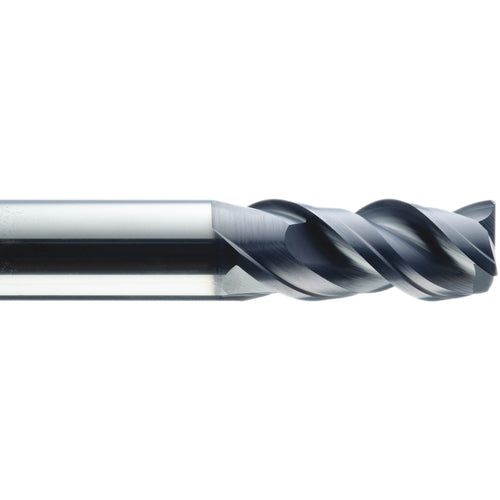

7/16 End Mill 3FL .020R TA - SER 33C 7/16x7/16x1-1/8x2-3/4
Item #: DD9233350
Brand: KYOCERA SGS Precision Tools
Model #: 33350
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 7/16″ |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 7/16″ |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1-1/8″ |
| Usable Length (LU) | 1-5/8″ |
| Overall Length (OAL) | 2-3/4″ |
| Corner Radius (RE) | 0.02″ |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | TA |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Decimal Equivalent | 0.4375″ |
| Flute Helix Angle (FHA) | Variable |
| Series/List # | 33C |
