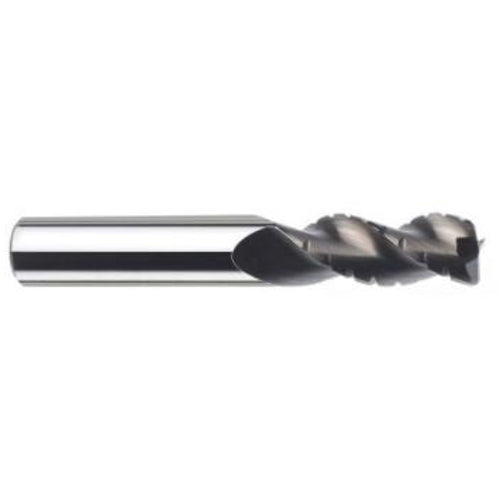

3/4 End Mill 3FL .030R TB - S-CARB CB 3/4x3/4x1-5/8x4
Item #: DD9234308
Brand: KYOCERA SGS Precision Tools
Model #: 34308
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1-5/8″ |
| Usable Length (LU) | 2-7/8″ |
| Overall Length (OAL) | 4″ |
| Corner Radius (RE) | 0.03″ |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | TB |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Decimal Equivalent | 0.75″ |
| Flute Helix Angle (FHA) | 38 Degrees |
| Series/List # | S-CARB |
