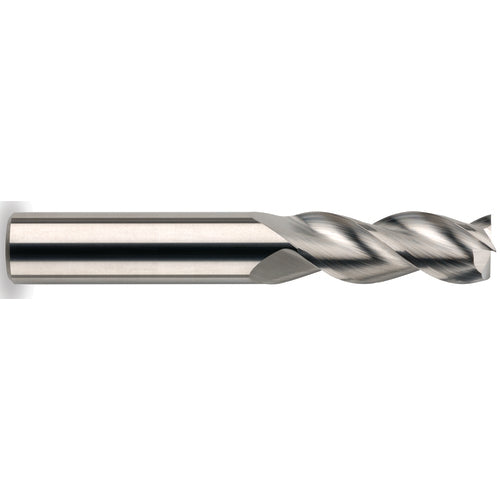

5/8 End Mill 3FL SQ TB - S-CARB 5/8x5/8x1-5/8x3-3/4
Item #: DD9234744
Brand: KYOCERA SGS Precision Tools
Model #: 34744
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Usable Length (LU) | 2-1/8″ |
| Depth of Cut Maximum (APMX) | 1-5/8″ |
| Corner Radius (RE) | None |
| Overall Length (OAL) | 3-3/4″ |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | TB |
| Decimal Equivalent | 0.625″ |
| Flute Count (NOF) | 3 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 38 Degrees |
| Series/List # | S-CARB |
| Shank Type | Round |
