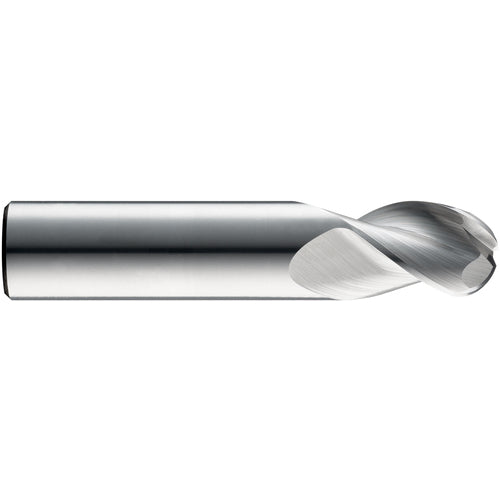

1″ Dia. × 1″ Shank × 3-1/4″ DOC × 6″ OAL, Carbide TiB2, Spiral , 3 Flute, 38° Helix, Ballnose End Mill
Item #: DD9234990
Brand: KYOCERA SGS Precision Tools
Model #: 34990
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1″ |
| Flute Count (NOF) | 3 |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Flute Helix Angle (FHA) | 38 Degrees |
| Depth of Cut Maximum (APMX) | 3-1/4″ |
| Usable Length (LU) | 2-3/4″ |
| Overall Length (OAL) | 6″ |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Style | Ball Nose |
| Coating | TiB2 |
| Decimal Equivalent | 1″ |
