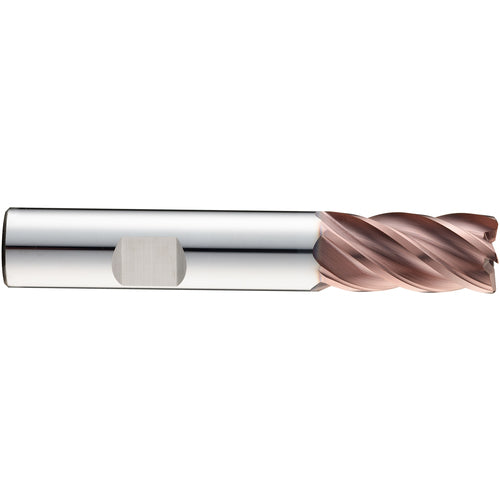

1″ End Mill 5FL SQ TM IC - Z-CARB HPR 1x1x1-1/8x4
Item #: DD9237288
Brand: KYOCERA SGS Precision Tools
Model #: 37288
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Usable Length (LU) | 2-7/8″ |
| Depth of Cut Maximum (APMX) | 1-1/8″ |
| Corner Radius (RE) | None |
| Overall Length (OAL) | 4″ |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | Coolant Thru |
| Coating | TM |
| Decimal Equivalent | 1″ |
| Flute Count (NOF) | 5 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 37 Degrees |
| Series/List # | Z-CARB HPR |
| Shank Type | Round |
