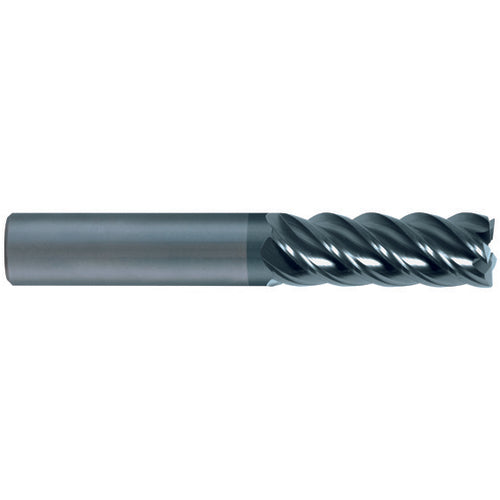

12.0 End Mill 5FL SQ TA WF - V-CARB 12x12x25x75
Item #: DD9242623
Brand: KYOCERA SGS Precision Tools
Model #: 42623
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 12 mm |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Usable Length (LU) | 50 mm |
| Depth of Cut Maximum (APMX) | 25 mm |
| Corner Radius (RE) | None |
| Overall Length (OAL) | 75 mm |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | TA |
| Decimal Equivalent | 0.4724″ |
| Flute Count (NOF) | 5 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 45 Degrees |
| Series/List # | V-CARB |
| Shank Type | Flatted |
