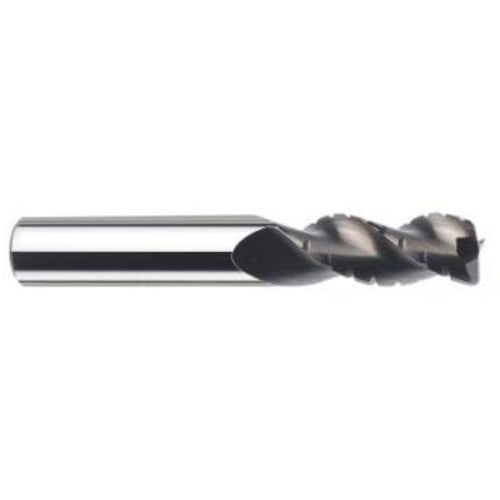

10.0 End Mill 3FL 0.30R - S-CARB CB 10x10x22x72
Item #: DD9244301
Brand: KYOCERA SGS Precision Tools
Model #: 44301
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 10 mm |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 22 mm |
| Usable Length (LU) | 50 mm |
| Overall Length (OAL) | 72 mm |
| Corner Radius (RE) | 0.3 mm |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | Uncoated |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Decimal Equivalent | 0.3937″ |
| Flute Helix Angle (FHA) | 38 Degrees |
| Series/List # | S-CARB |
