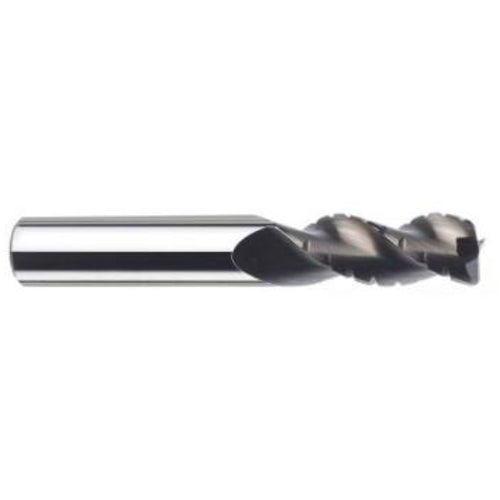

12.0 End Mill 3FL 1.00R TB - S-CARB CB 12x12x26x83
Item #: DD9244307
Brand: KYOCERA SGS Precision Tools
Model #: 44307
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 12 mm |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 26 mm |
| Usable Length (LU) | 57 mm |
| Overall Length (OAL) | 83 mm |
| Corner Radius (RE) | 1 mm |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | TB |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Decimal Equivalent | 0.4724″ |
| Flute Helix Angle (FHA) | 38 Degrees |
| Series/List # | S-CARB |
