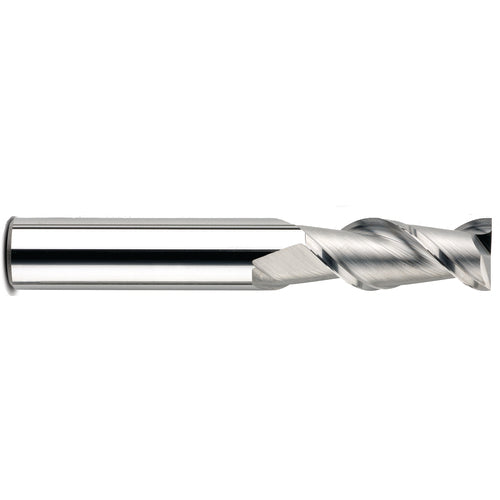

20.0 End Mill 2FL SQ WF - SKI-CARB 20x20x38x104
Item #: DD9244545
Brand: KYOCERA SGS Precision Tools
Model #: 44545
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 20 mm |
| Shank Type | Flatted |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| End Shape | Square |
| Depth of Cut Maximum (APMX) | 38 mm |
| Usable Length (LU) | 66 mm |
| Overall Length (OAL) | 104 mm |
| Corner Radius (RE) | None |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | Uncoated |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| Decimal Equivalent | 0.7874″ |
| Flute Helix Angle (FHA) | 45 Degrees |
| Measurement Type | Metric |
