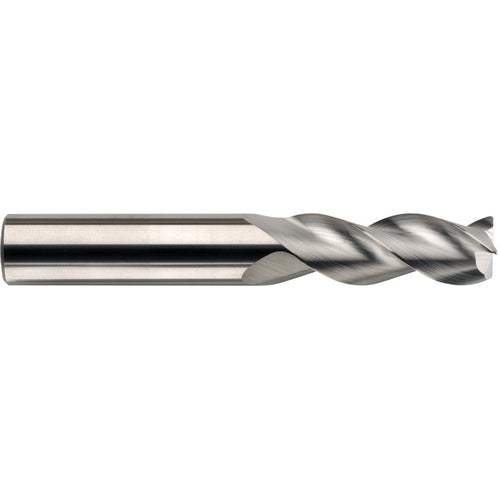

6.0 End Mill 3FL 1.00R - S-CARB 6x6x13x72
Item #: DD9244772
Brand: KYOCERA SGS Precision Tools
Model #: 44772
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 6 mm |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Usable Length (LU) | 59 mm |
| Depth of Cut Maximum (APMX) | 13 mm |
| Corner Radius (RE) | 1 mm |
| Overall Length (OAL) | 72 mm |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | Uncoated |
| Decimal Equivalent | 0.2362″ |
| Flute Count (NOF) | 3 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 38 Degrees |
| Series/List # | S-CARB |
| Shank Type | Round |
