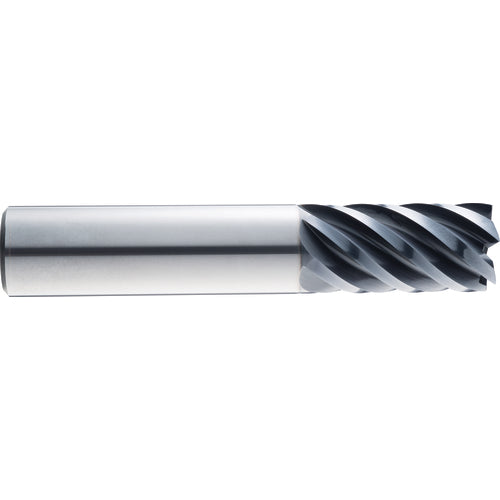

16.0 End Mill 6FL SQ TX - T-CARB 16x16x32x92
Item #: DD9245104
Brand: KYOCERA SGS Precision Tools
Model #: 45104
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 16 mm |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Usable Length (LU) | 60 mm |
| Depth of Cut Maximum (APMX) | 32 mm |
| Corner Radius (RE) | None |
| Overall Length (OAL) | 92 mm |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | AlTiN |
| Decimal Equivalent | 0.6299″ |
| Flute Count (NOF) | 6 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 41 Degrees |
| Series/List # | T-CARB |
| Shank Type | Round |
