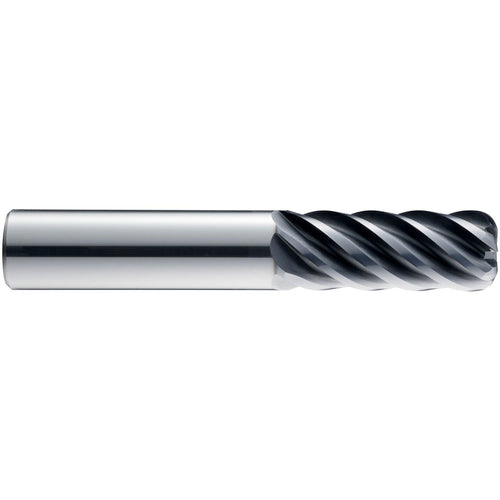

8.0 End Mill 6FL 1.00R TX - T-CARB 8x8x20x63
Item #: DD9245114
Brand: KYOCERA SGS Precision Tools
Model #: 45114
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 8 mm |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 20 mm |
| Usable Length (LU) | 44 mm |
| Overall Length (OAL) | 63 mm |
| Corner Radius (RE) | 1 mm |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | AlTiN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 6 |
| Decimal Equivalent | 0.315″ |
| Flute Helix Angle (FHA) | 41 Degrees |
| Series/List # | T-CARB |
