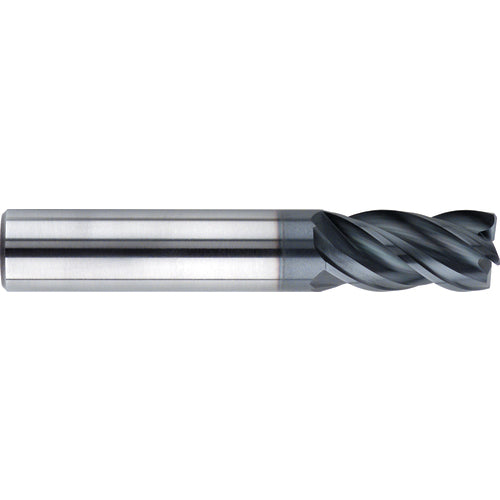

14.0 End Mill 4FL SQ TA JET - Z-CARB 14x14x26x83
Item #: DD9246506
Brand: KYOCERA SGS Precision Tools
Model #: 46506
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 14 mm |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 14 mm |
| Usable Length (LU) | 57 mm |
| Depth of Cut Maximum (APMX) | 26 mm |
| Corner Radius (RE) | None |
| Overall Length (OAL) | 83 mm |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | TA |
| Decimal Equivalent | 0.5512″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Metric |
| Shank Type | Round |
