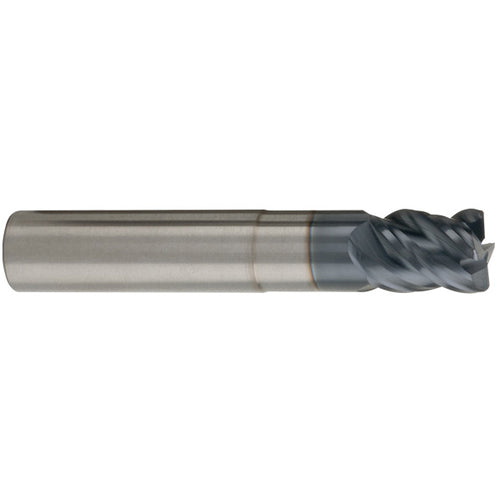

4.0 End Mill 4FL 0.30R TX - Z-CARB MD 4x6x5x57
Item #: DD9246561
Brand: KYOCERA SGS Precision Tools
Model #: 46561
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 4 mm |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Usable Length (LU) | 46 mm |
| Depth of Cut Maximum (APMX) | 5 mm |
| Corner Radius (RE) | 0.3 mm |
| Overall Length (OAL) | 57 mm |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | AlTiN |
| Decimal Equivalent | 0.1575″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Metric |
| Shank Type | Round |
