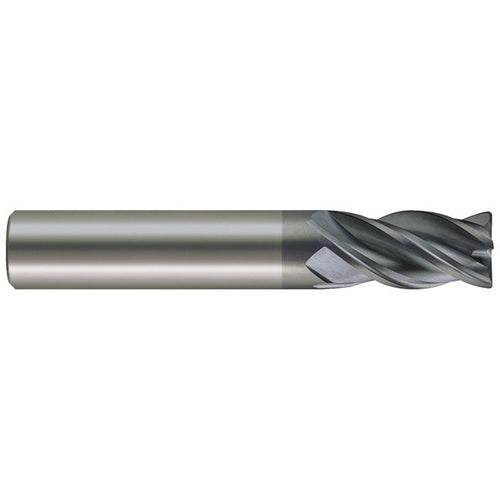

16.0 End Mill 4FL 2.50R TX WF Z-CARB ZAP 16x16x32x92
Item #: DD9246920
Brand: KYOCERA SGS Precision Tools
Model #: 46920
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 16 mm |
| Shank Type | Flatted |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 32 mm |
| Usable Length (LU) | 60 mm |
| Overall Length (OAL) | 92 mm |
| Corner Radius (RE) | 2.5 mm |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | AlTiN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Decimal Equivalent | 0.6299″ |
