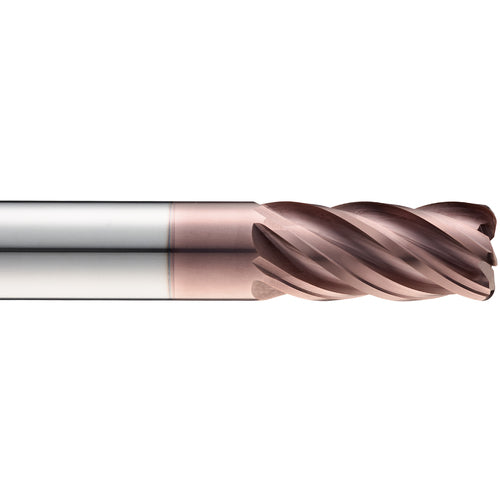

25.0 End Mill 5FL 3.00R TM IC Z-CARB HPR 25x25x53x121
Item #: DD9247095
Brand: KYOCERA SGS Precision Tools
Model #: 47095
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 25 mm |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 53 mm |
| Usable Length (LU) | 68 mm |
| Overall Length (OAL) | 121 mm |
| Corner Radius (RE) | 3 mm |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | TM |
| Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 5 |
| Decimal Equivalent | 0.9843″ |
| Flute Helix Angle (FHA) | 37 Degrees |
| Series/List # | Z-CARB HPR |
