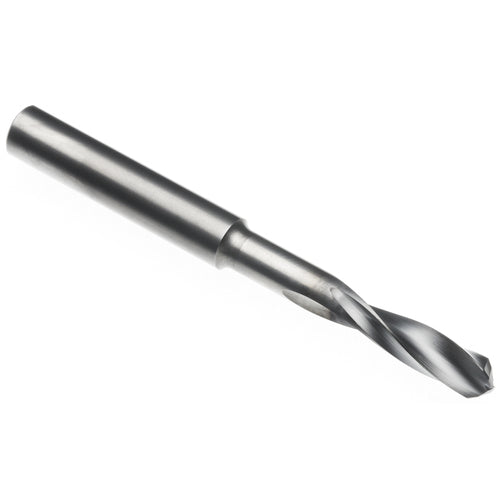

1/2″ Dia. × 1/2″ Shank × 2-5/16″ Flute Length × 4-1/4″ OAL, 3xD, 145°, TD, 2 Flute, External, Round Solid Carbide Drill
Item #: DD9250031
Brand: KYOCERA SGS Precision Tools
Model #: 50031
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 1/2″ |
| Tool Type | Drill |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/2″ |
| Length Below Shank | 1.765″ |
| Decimal Equivalent | 0.5″ |
| Flute Type | Spiral |
| Length Group | 3xD |
| Measurement Type | Inch |
| Coating | TD |
| Series/List # | 120 |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Usable Length (LU) | 2-5/16″ |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 2-5/16″ |
| Point Angle (SIG) | 145 Degrees |
| Overall Length (OAL) | 4-1/4″ |
| Flute Helix Angle (FHA) | 20 Degrees |
| Flute Count (NOF) | 2 |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
