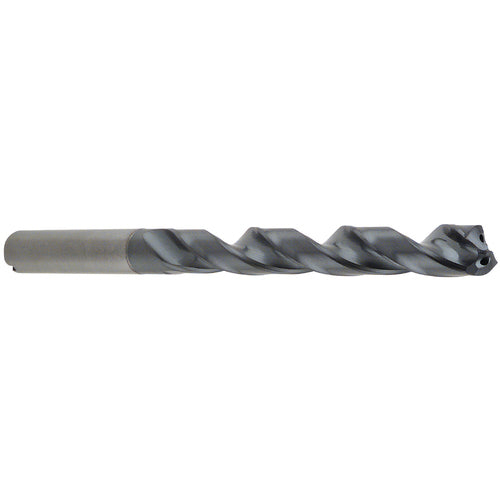

6.8 mm Dia. × 8 mm Shank × 76 mm Flute Length × 114 mm OAL, 8xD, 140°, TA, 2 Flute, Coolant Thru, Round Solid Carbide Drill
Item #: DD9263613
Brand: KYOCERA SGS Precision Tools
Model #: 63613
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 6.8 mm |
| Tool Type | Drill |
| Decimal Equivalent | 0.2677″ |
| Length Below Shank | 36 mm |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.8 mm |
| Flute Type | Spiral |
| Length Group | 8xD |
| Measurement Type | Metric |
| Coating | TA |
| Series/List # | Ice-Carb |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Usable Length (LU) | 76 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 76 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 114 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Flute Count (NOF) | 2 |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
