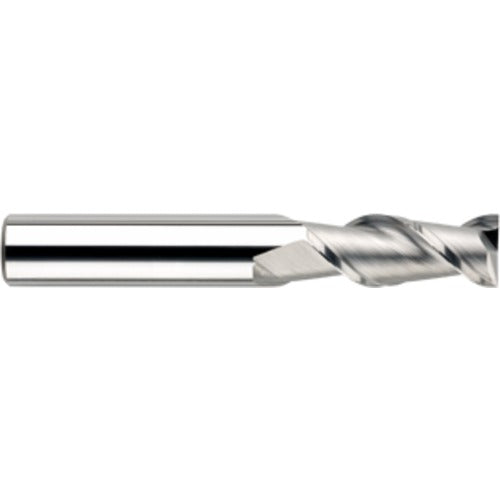

1″ End Mill 2FL .040R TB - SKI-CARB 1x1x1-1/4x4
Item #: DD9291241
Brand: KYOCERA SGS Precision Tools
Model #: 91241
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1″ |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1-1/4″ |
| Usable Length (LU) | 2-3/4″ |
| Overall Length (OAL) | 4″ |
| Corner Radius (RE) | 0.04″ |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | TB |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| Decimal Equivalent | 1″ |
| Flute Helix Angle (FHA) | 45 Degrees |
