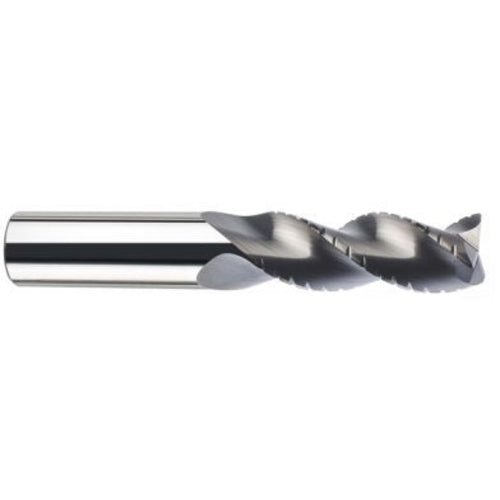

25.0 End Mill 4FL 3.00R TB - S-CARB APF 25x25x63x130
Item #: DD9444763
Brand: KYOCERA SGS Precision Tools
Model #: 44763
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 25 mm |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Usable Length (LU) | 67 mm |
| Depth of Cut Maximum (APMX) | 63 mm |
| Corner Radius (RE) | 3 mm |
| Overall Length (OAL) | 130 mm |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | TB |
| Decimal Equivalent | 0.9843″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Metric |
| Shank Type | Round |
| Series/List # | S-CARB |
