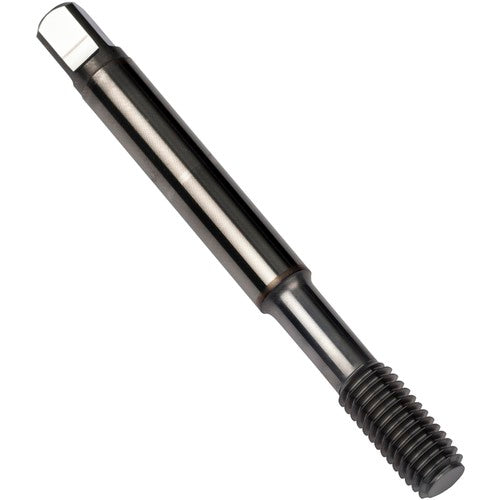

M8x1.25 Carbide Threadform Tap E-code # T215M8
Item #: DH9147174127
Brand: Dormer
Model #: 7174127
| Product Specifications | |
|---|---|
| Tool Type | Form Taps |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Diameter Size (TDZ) | M8 |
| Tapping Prehole Diameter (Pre-hole) | 7.4 mm |
| Thread Pitch (TP) | 1.25 mm |
| Thread Standard | M |
| Overall Length (OAL) | 90 mm |
| Coating | TiCN |
| Thread Cutting Part Length (THL) | 22 mm |
| Measurement Type | Metric |
| Usable Length (LU) | 35 mm |
| Cutting Edge Material | HM |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Thread Size | M8 × 1.25 |
| Flute Count (NOF) | 5 |
