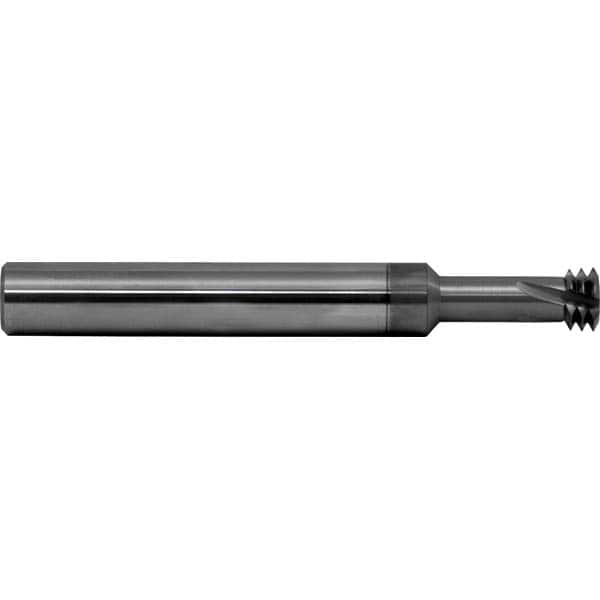

Cleveland - Straight Flute Thread Mills Pitch (mm): 1.75 Thread Size (mm): M12 - Exact Tooling

Cleveland - Straight Flute Thread Mills Pitch (mm): 1.75 Thread Size (mm): M12


Item #: 18112797
Brand: Cleveland
Model #: C95138

Features and Benefits

Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Aluminum chromium nitride (AlCrN) has higher-heat resistance than AlTiN. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.

Product Specifications

Straight Flute Thread Mills; Pitch (mm): 1.75 ; Thread Size (mm): M12 ; Minimum Nominal Diameter (mm): M12 ; Material: Solid Carbide ; Thread Type: Internal/External ; Shank Diameter (Decimal Inch): 0.3750
Pitch (mm) 1.75
Thread Size (mm) M12
Minimum Nominal Diameter (mm) M12
Material Solid Carbide
Thread Type Internal/External
Shank Diameter (Decimal Inch) 0.3750
Shank Diameter (Inch) 0.375
Number of Flutes 4
Cutting Diameter (Inch) 0.36
Finish/Coating AlCrN
Length of Cut (Decimal Inch) 1.0000
Thread Standard ISO
Through Coolant NonThrough Coolant
Overall Length (Decimal Inch) 3.00000
Through Coolant NonThrough Coolant
Material Grade Submicron
Thread Mill Type Mini
PSC Code 5133
