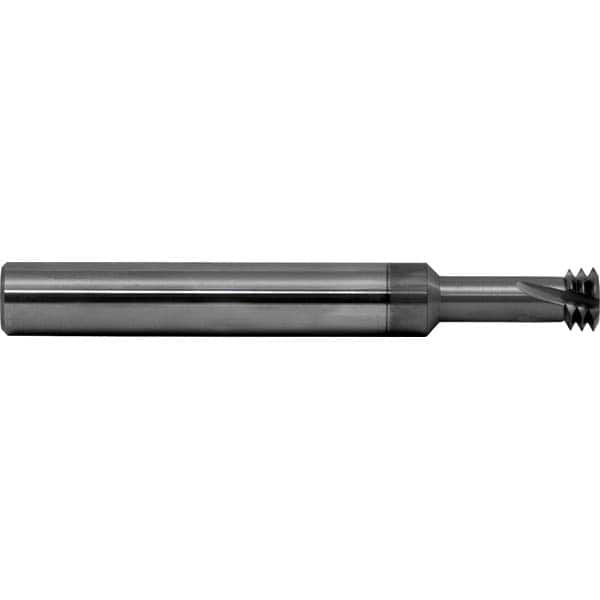

Cleveland - Straight Flute Thread Mills Pitch (mm): 1.50 Thread Size (mm): M10
Item #: 18112607
Brand: Cleveland
Model #: C95137
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Aluminum chromium nitride (AlCrN) has higher-heat resistance than AlTiN. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
Product Specifications
Straight Flute Thread Mills; Pitch (mm): 1.50 ; Thread Size (mm): M10 ; Minimum Nominal Diameter (mm): M10 ; Material: Solid Carbide ; Thread Type: Internal/External ; Shank Diameter (Decimal Inch): 0.3750
| Pitch (mm) | 1.50 |
| Thread Size (mm) | M10 |
| Minimum Nominal Diameter (mm) | M10 |
| Material | Solid Carbide |
| Thread Type | Internal/External |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Shank Diameter (Inch) | 0.375 |
| Number of Flutes | 3 |
| Cutting Diameter (Inch) | 0.33 |
| Finish/Coating | AlCrN |
| Length of Cut (Decimal Inch) | 0.8000 |
| Thread Standard | ISO |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 3.00000 |
| Through Coolant | NonThrough Coolant |
| Material Grade | Submicron |
| Thread Mill Type | Mini |
| PSC Code | 5133 |
