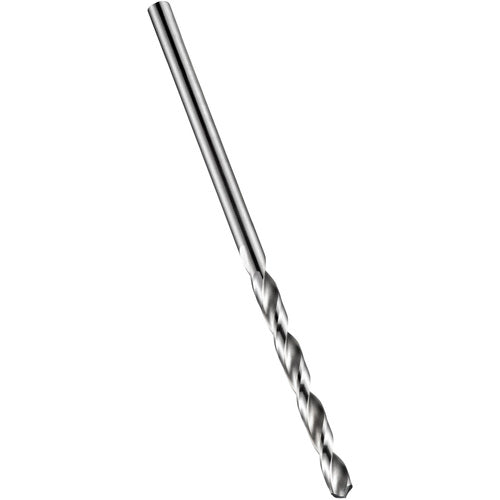

6.4 mm HSS Drill - 4xD - DIN 338 - Bright/TiN - 118 Degree Split Point E-code # A0026.4
Item #: DT180351000
Brand: Dormer
Model #: 5967247
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 6.4 mm |
| Helix Angle | CW |
| Decimal Equivalent | 0.2520 |
| Point Shape | Split Point |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.4 mm |
| Shank Type | Round |
| Measurement Type | Metric |
| Standard | DIN 338 |
| Angle | 118 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.252″ |
| Cutting Edge Material | HSS |
| L Group | 4xD |
| Applicable Material | Aluminum|Cast Iron|Copper|Exotic Alloys|Hard Materials|Hardened Steel|Plastics|Stainless Steel|Steel|Titanium |
| Tool Type | Drill |
| Coating | Bright | TiN |
| Tool Radius | 118 Degrees |
| Coolant Supply Property (CSP) | External |
| Series/List # | A002 |
| Cutting Depth | 63 mm |
| Overall Length (OAL) | 101 mm |
| Flute Length | 63 mm |
