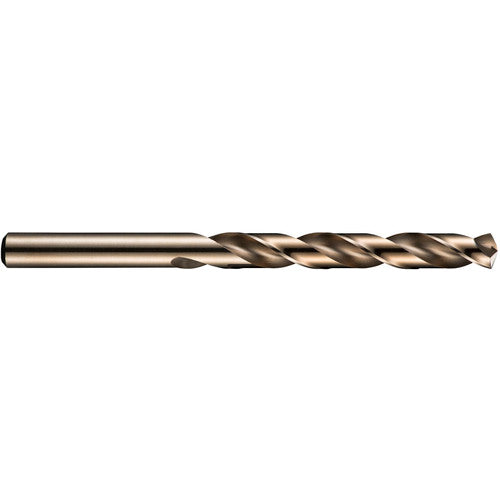

0.5 mm HSS-E Drill - 4xD - DIN 338 - Bronze Oxide - 135 Degree 4-Facet Point E-code # A777.5
Item #: DT550375808
Brand: Dormer
Model #: 5970913
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 0.5 mm |
| Helix Angle | CW |
| Decimal Equivalent | 0.0197 |
| Point Shape | 4-Facet |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 0.5 mm |
| Shank Type | Round |
| Measurement Type | Metric |
| Standard | DIN 338 |
| Angle | 135 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.0197″ |
| Cutting Edge Material | HSS-E |
| L Group | 4xD |
| Applicable Material | Aluminum|Cast Iron|Copper|Exotic Alloys|Hard Materials|Hardened Steel|Stainless Steel|Steel|Titanium |
| Tool Type | Drill |
| Coating | Bronze Oxide |
| Series/List # | A777 |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 22 mm |
