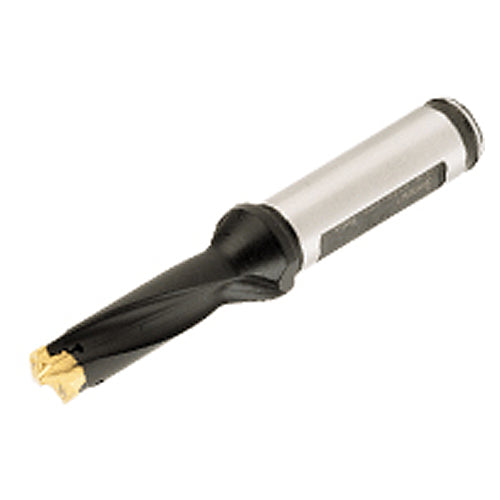

DCM 0315-094-050A-3D
Item #: EH233200638
Brand: Iscar
Model #: 3200638
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.315″ |
| Overall Length (OAL) | 3.15″ |
| Usable Length (LU) | 0.94″ |
| Shank Length (LS) | 1.77″ |
| Length Group | 3D |
| Coolant Supply Property (CSP) | Through Hole |
| Application | | Drilling | |
| Measurement Type | Inch |
| Tool Type | Indexable Insert Drills |
| Master Insert Identification (MIID) | IDI 080-SG |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Point Length (PL) | 0.057″ |
| Insert Seat Size Code (SSC) | 8.0 |
| Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.315″ |
| Flange Diameter (DF) | 0.63″ |
| Cutting Diameter Maximum (DCX) | 0.331″ |
| Decimal Equivalent | 0.315″ |
| Protruding Length (LPR) | 1.38″ |
| Body Diameter Reduced (BDRED) | 0.63″ |
| Functional Length (LF) | 1.323″ |
