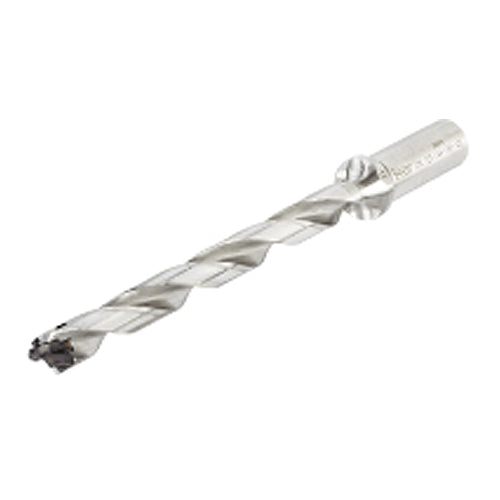

DCN 270-324-32R-12D
Item #: EH233203560
Brand: Iscar
Model #: 3203560
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 27 mm |
| Functional Length (LF) | 361.79 mm |
| Usable Length (LU) | 328.9 mm |
| Overall Length (OAL) | 453.6 mm |
| Length Group | 12D |
| Shank Length (LS) | 60 mm |
| Shank Type | Round |
| Coolant Supply Property (CSP) | Through Hole |
| Application | | Drilling | |
| Measurement Type | Metric |
| Tool Type | Indexable Insert Drills |
| Master Insert Identification (MIID) | ICP 270 |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Point Length (PL) | 4.1 mm |
| Insert Seat Size Code (SSC) | 27.0 |
| Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 27 mm |
| Flange Diameter (DF) | 42 mm |
| Cutting Diameter Maximum (DCX) | 27.9 mm |
| Body Diameter Reduced (BDRED) | 42 mm |
| Protruding Length (LPR) | 393.7 mm |
| Connection Code Machine Side (CCMS) | Cylindrical |
