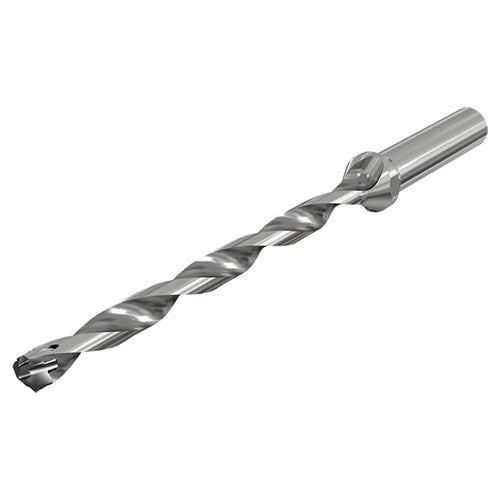

DCN 1142-1370-125R-12D
Item #: EH233203563
Brand: Iscar
Model #: 3203563
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1.142″ |
| Overall Length (OAL) | 18.73″ |
| Usable Length (LU) | 13.91″ |
| Shank Length (LS) | 2.36″ |
| Length Group | 12D |
| Coolant Supply Property (CSP) | Through Hole |
| Shank Type | Round |
| Measurement Type | Inch |
| Application | | Drilling | |
| Master Insert Identification (MIID) | ICP 290 |
| Tool Type | Indexable Insert Drills |
| Point Length (PL) | 0.208″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
| Body Material | Steel |
| Insert Seat Size Code (SSC) | 29.0 |
| Flange Diameter (DF) | 1.65″ |
| Cutting Diameter Minimum (DCN) | 1.142″ |
| Decimal Equivalent | 1.142″ |
| Cutting Diameter Maximum (DCX) | 1.177″ |
| Body Diameter Reduced (BDRED) | 1.65″ |
| Protruding Length (LPR) | 16.37″ |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Functional Length (LF) | 16.162″ |
