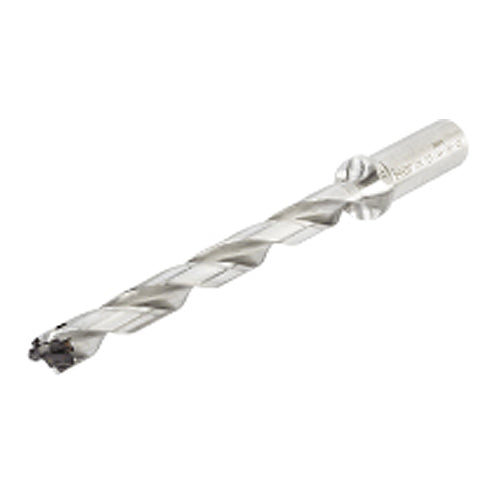

DCN 280-336-32R-12D
Item #: EH233260250
Brand: Iscar
Model #: 3260250
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 28 mm |
| Functional Length (LF) | 375.1 mm |
| Usable Length (LU) | 341.1 mm |
| Overall Length (OAL) | 466.2 mm |
| Length Group | 12D |
| Shank Length (LS) | 60 mm |
| Shank Type | Round |
| Coolant Supply Property (CSP) | Through Hole |
| Application | | Drilling | |
| Measurement Type | Metric |
| Tool Type | Indexable Insert Drills |
| Master Insert Identification (MIID) | ICP 280 |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Point Length (PL) | 4.25 mm |
| Insert Seat Size Code (SSC) | 28.0 |
| Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 28 mm |
| Flange Diameter (DF) | 42 mm |
| Cutting Diameter Maximum (DCX) | 28.9 mm |
| Body Diameter Reduced (BDRED) | 42 mm |
| Protruding Length (LPR) | 406.2 mm |
| Connection Code Machine Side (CCMS) | Cylindrical |
